170780-1 | AMP

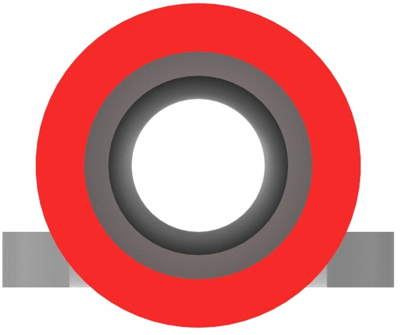

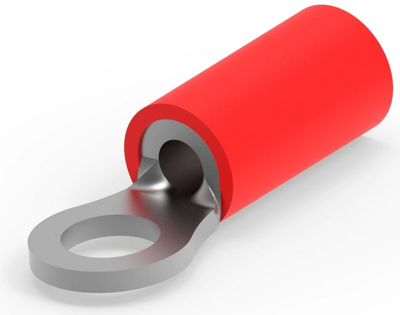

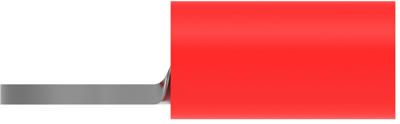

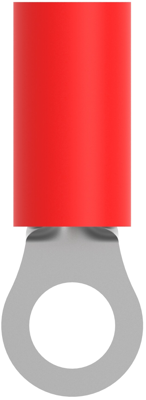

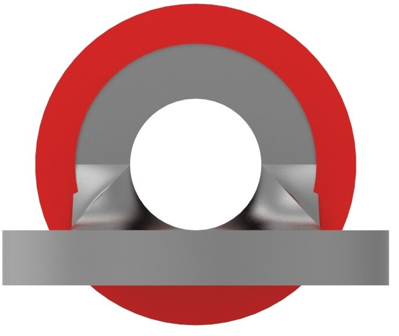

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 18, 3.3 mm, M3, red, 170780-1
Unit Price (€ / pc.)
0.4165 € *
Available: 550 pcs.
Available in 5 Days: 108,985 pcs.
Leadtime: 43 Weeks **
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3689 €
50 pcs.
0.3213 €
100 pcs.
0.2749 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 170780-1, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Stripe Color: Red, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 18 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.3 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Bag
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 22 bis 18 | |
| Colour | rot | |
| Thread size | M3 | |
| Material Insulation | PVC | |
| Isolated | Yes | |
| Cable cross-section | 0,3-1,42 mm² | |
| Hole diameter | 3.3 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
