171551-1 | AMP

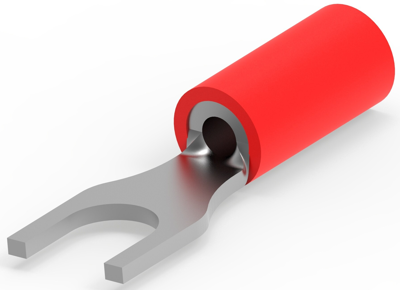

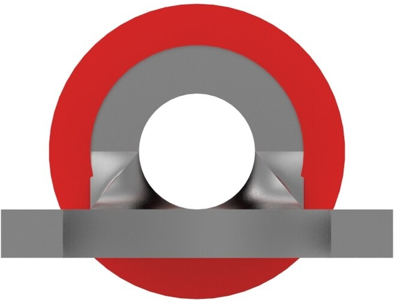

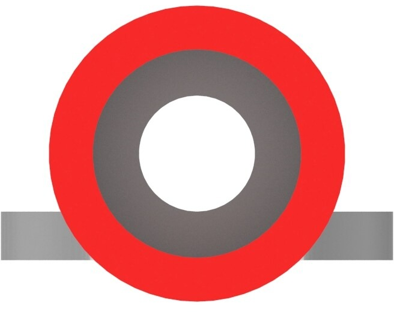

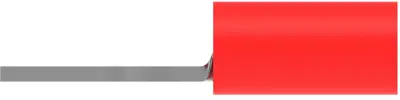

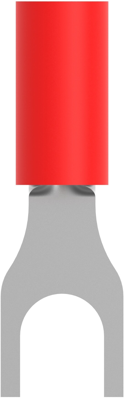

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 18, 4.3 mm, M4, red, 171551-1
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Available in 5 Days: 4,954 pcs.
Leadtime: 43 Weeks **
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
250 pcs.
0.4165 €
1300 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 171551-1, AMP
Shape Description: SPADE-021, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 18 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Bag
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 22 to 18 | |
| Colour | red | |
| Thread size | M4 | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Hole diameter | 4.3 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
