2-1377173-4 | AMP

Insulated forked cable lug, 1.25-2 mm², AWG 16 to 14, 3 mm, M2, blue, 2-1377173-4

Order No.: 71P4754
EAN: 4099891603229
MPN:
2-1377173-4
Series: PLASTI-GRIP
AMP

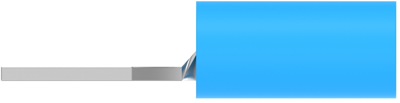

2-1377173-4 AMP Cable Lugs Image 1

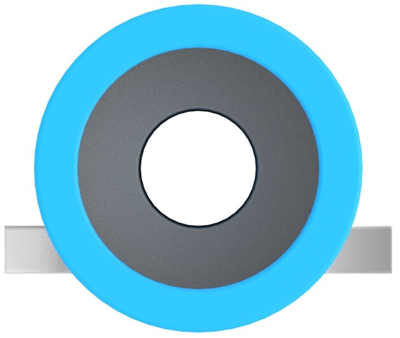

2-1377173-4 AMP Cable Lugs Image 2

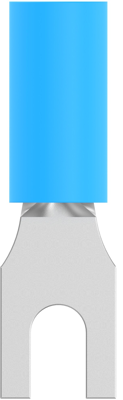

2-1377173-4 AMP Cable Lugs Image 3

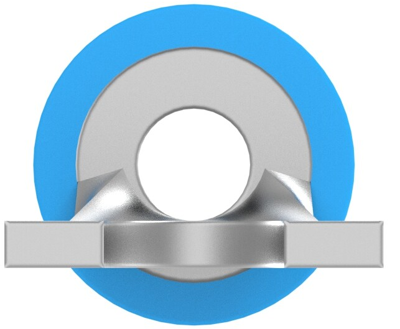

2-1377173-4 AMP Cable Lugs Image 4

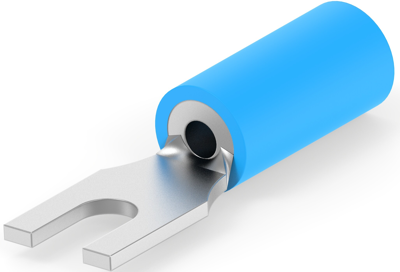

2-1377173-4 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.5950 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 78 Weeks **
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
200 pcs.
0.5950 €
900 pcs.
0.4879 €
*incl. VAT plus shipping costs
**Subject to prior sale

Spade cable lug, 2-1377173-4, AMP

Spade terminal, Spade tongue, 16-14 AWG Wire size, 1.25-2 mm² Wire size, 2050-5180 CMA Wire size.

Technical specifications
Version forked cable lug
AWG cross-section AWG 16 to 14
Colour blue
Thread size M2
Material Insulation PA
Isolated Yes
Cable cross-section 1.25-2 mm²
Hole diameter 3 mm
Material copper, tin-plated
max. operating temperature 105 °C
shrinkable tubing Yes
Logistics
Country of origin NL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
