2-31425-2 | AMP
Uninsulated ring cable lug, 0.12-0.4 mm², AWG 26 to 22, 2.36 mm, M2, metal, 2-31425-2
Order No.: 39P8346
EAN: 4099889600957
MPN:
2-31425-2
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: On Request **

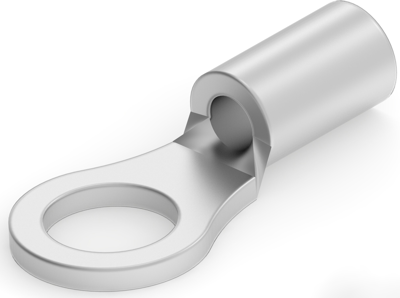

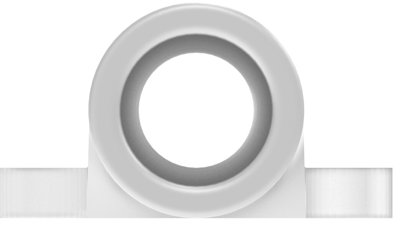

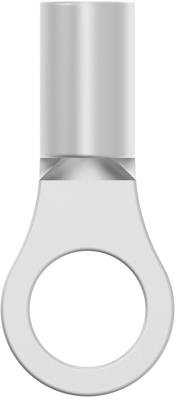

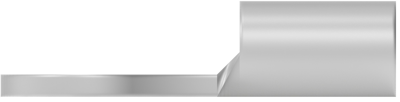

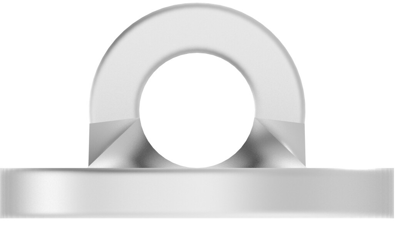

Ring cable lug, 2-31425-2, AMP
Shape Description: RING-049, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.089 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 26 – 22 AWG, Wire Size: 0.12 -0.4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 2.36 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted, Line: Budget
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 26 to 22 | |
| Colour | metal | |
| Thread size | M2 | |
| Isolated | No | |
| Cable cross-section | 0.12-0.4 mm² | |
| Hole diameter | 2.36 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
