2-31895-1 | AMP

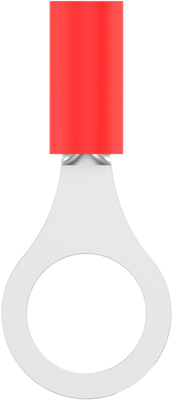

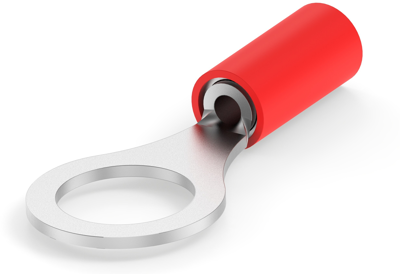

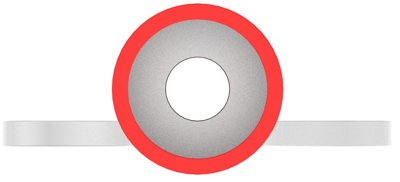

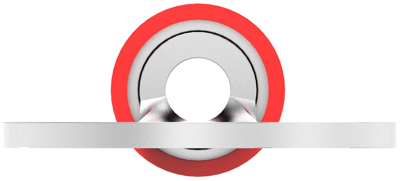

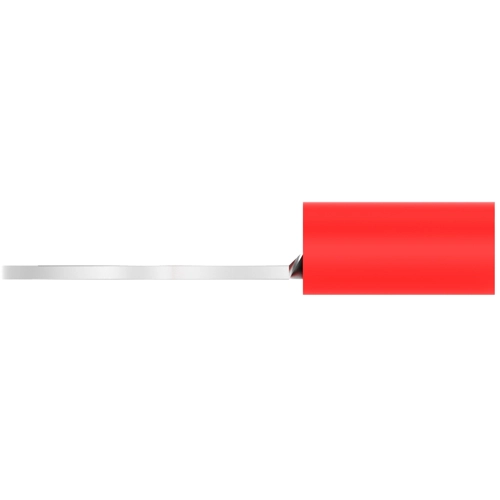

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 7.92 mm, M8, red, 2-31895-1
Unit Price (€ / pc.)
0.6902 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 43 Weeks **
Cable lug, 2-31895-1, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Red, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 7.92 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 22 bis 16 | |
| Farbe | rot | |
| Gewindegröße | M8 | |
| Isolationsmaterial | PA | |
| Isoliert | Yes | |
| Leiterquerschnitt | 0,3-1,42 mm² | |
| Lochdurchmesser | 7.92 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
