2-34112-2 | AMP

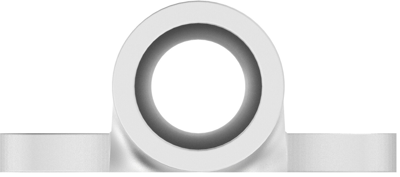

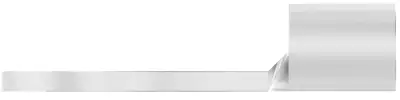

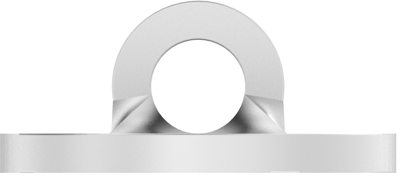

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22, 5 mm, metal, 2-34112-2
Order No.: 39P8434
EAN: 4099889601466
MPN:
2-34112-2
Unit Price (€ / pc.)
0.2559 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 2-34112-2, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .745 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Hole diameter | 5 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
