2-34152-2 | AMP

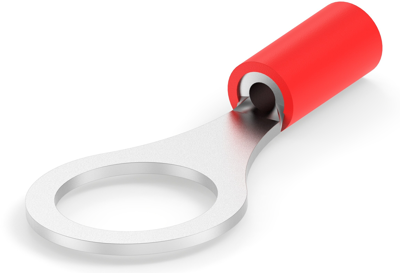

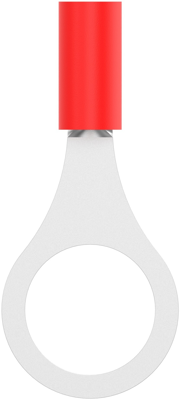

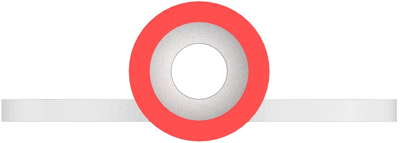

Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 9.91 mm, red, 2-34152-2
Unit Price (€ / pc.)
1.0472 € *
Available: 0 pcs.
Leadtime: 40 Weeks **
Ring cable lug, 2-34152-2, AMP
Shape Description: RING-043, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 1.1 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 22 bis 16 | |
| Farbe | rot | |
| Isolationsmaterial | Vinyl | |
| Isoliert | Yes | |
| Leiterquerschnitt | 0,26-1,65 mm² | |
| Lochdurchmesser | 9.91 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
