2-36149-5 | AMP

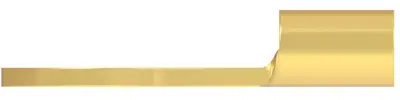

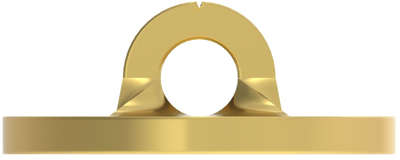

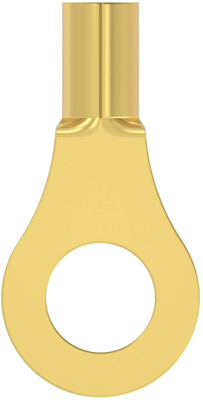

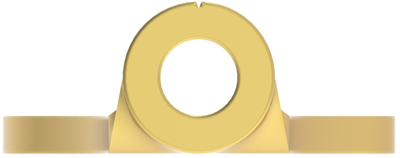

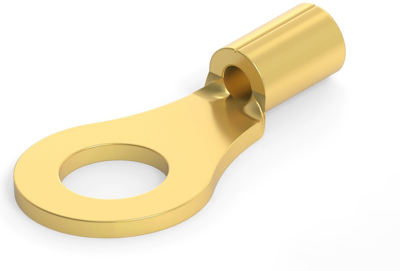

Insulated ring cable lug, 0.8-0.9 mm², AWG 18, 3.68 mm, M3.5, red, 2-36149-5
Unit Price (€ / pc.)
1.0829 € *
Available: 0 pcs.
Available in 5 Days: 700 pcs.
Leadtime: 43 Weeks **
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
0.9758 €
50 pcs.
0.8806 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 2-36149-5, AMP
Shape Description: RING-042, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .676 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 18 AWG, Wire Size: .8 – .9 mm², Wire Size: 1900 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | rot | |
| Gewindegröße | M3,5 | |
| Isolationsmaterial | PA | |
| Isoliert | Yes | |
| Leiterquerschnitt | 0,8-0,9 mm² | |
| Lochdurchmesser | 3.68 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
