3-1377172-6 | AMP

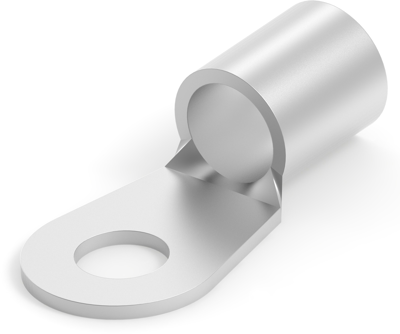

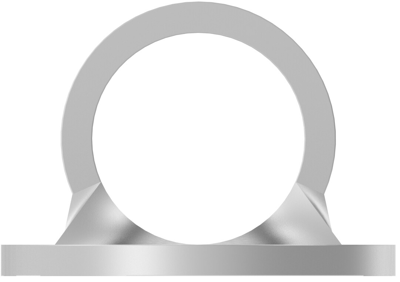

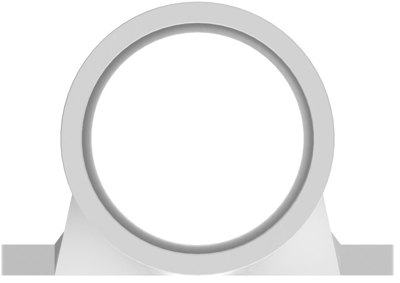

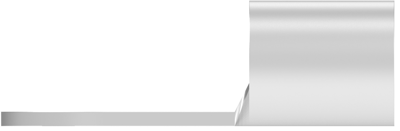

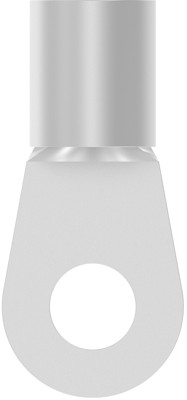

Uninsulated ring cable lug, 34-35 mm², 10 mm, M10, 3-1377172-6
Order No.: 39P8558
EAN: 4099889601985
MPN:
3-1377172-6
Unit Price (€ / pc.)
7.0805 € *
Available: 0 pcs.
Available in 5 Days: 260 pcs.
Leadtime: 45 Weeks **
Total Price:
7.08 € *
Price list
Quantity
Price per unit*
20 pcs.
7.0805 €
70 pcs.
6.6521 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 3-1377172-6, AMP
Shape Description: RING-049, Ring & Spade Stud Size: M10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: 24.975 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 34 – 35 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 10 mm,10.5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 10, Ring & Spade Packaging Method: Small Pack
Technical specifications
| Version | ring cable lug | |
| Thread size | M10 | |
| Isolated | No | |
| Cable cross-section | 34-35 mm² | |
| Hole diameter | 10 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
