31163 | AMP

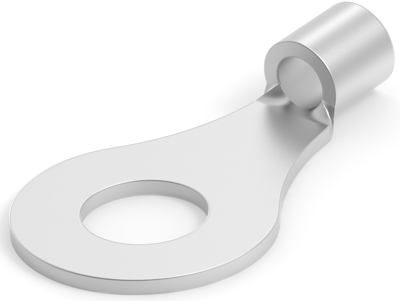

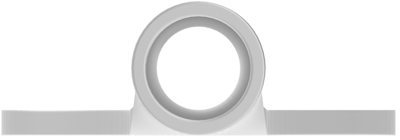

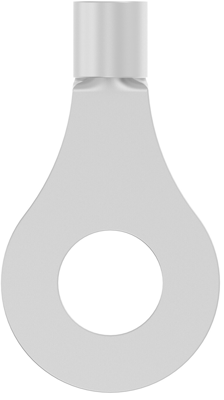

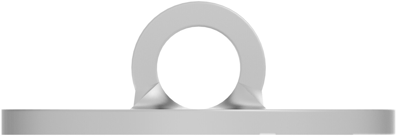

Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16, 5.49 mm, metal, 31163
Unit Price (€ / pc.)
0.1964 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 39 Weeks **
Total Price:
0.20 € *
Price list
Quantity
Price per unit*
450 pcs.
0.1964 €
2600 pcs.
0.1702 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 31163, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.099 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5.49 mm, Tongue Thickness: .84 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Package, Line: Budget
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 5.49 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
