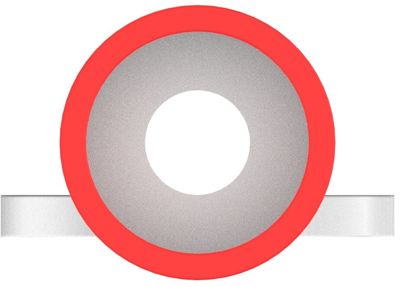

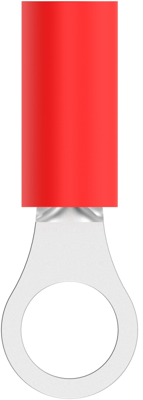

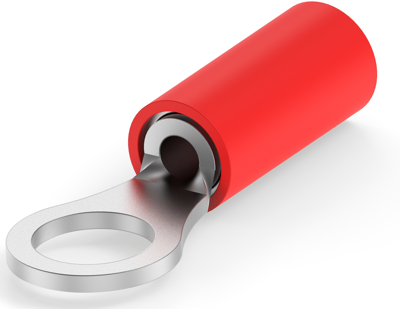

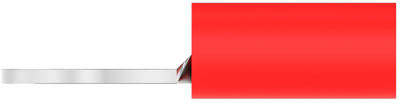

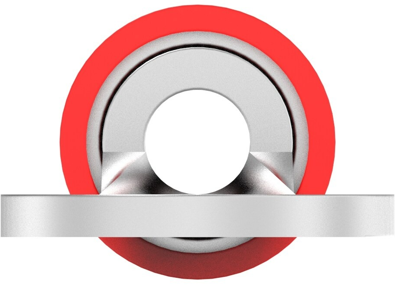

31887 | AMP
Insulated ring cable lug, 0.3-1.42 mm², AWG 22, 5 mm, red, 31887
Unit Price (€ / pc.)
0.2142 € *
Available: 0 pcs.
Available in 5 Days: 3,429 pcs.
Leadtime: 45 Weeks **
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
500 pcs.
0.2142 €
2400 pcs.
0.2106 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 31887, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .658 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.82 mm, Tongue Thickness: .84 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 | |
| Colour | red | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Hole diameter | 5 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
