320093 | AMP

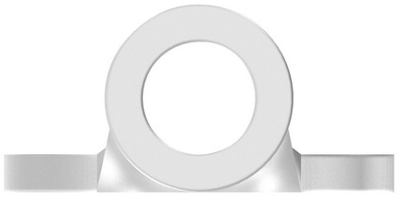

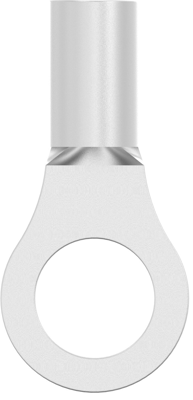

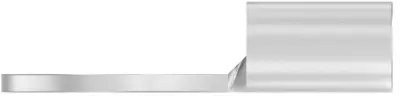

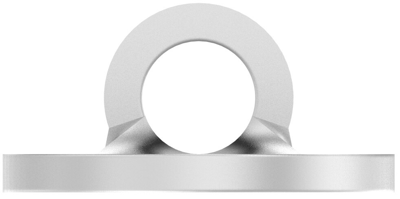

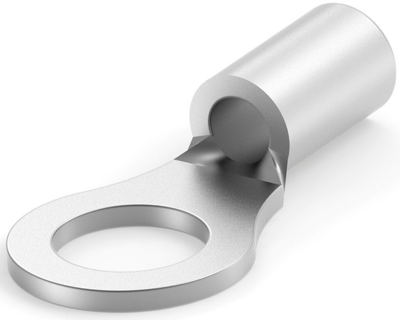

Uninsulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 5 mm, metal, 320093
Order No.: 39P8676
EAN: 4099889603033
MPN:
320093
Unit Price (€ / pc.)
0.5117 € *
Available: 0 pcs.
Available in 5 Days: 27,062 pcs.
Leadtime: 39 Weeks **
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4522 €
50 pcs.
0.3927 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 320093, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.723 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 16 bis 14 | |
| Farbe | metall | |
| Isoliert | No | |
| Leiterquerschnitt | 1,04-2,62 mm² | |
| Lochdurchmesser | 5 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 170 °C |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
