320564 | AMP

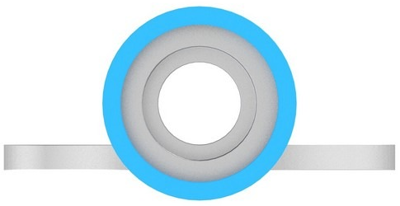

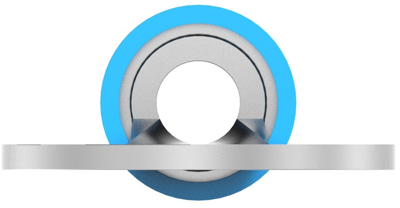

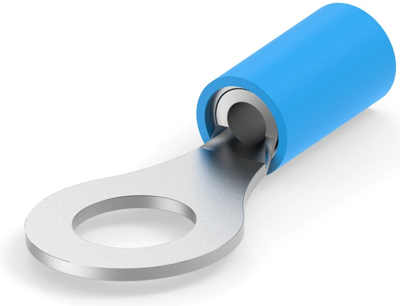

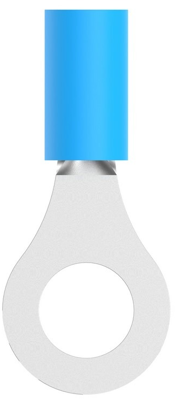

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 9.53 mm, blue, 320564
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Available in 5 Days: 7,948 pcs.
Leadtime: 43 Weeks **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
200 pcs.
0.5712 €
900 pcs.
0.4879 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 320564, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 1.363 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 9.53 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | blue | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 9.53 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
