320568 | AMP

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 4.17 mm, M4, yellow, 320568

Order No.: 39P3579
EAN: 4099889594195
MPN:
320568
Series: PIDG

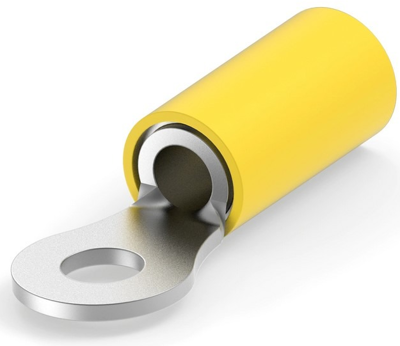

320568 AMP Cable Lugs Image 1

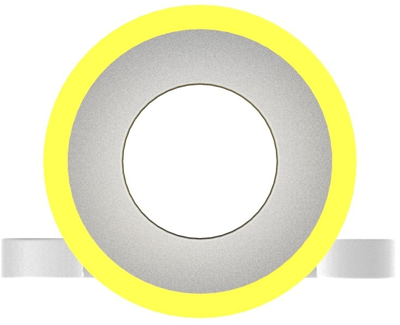

320568 AMP Cable Lugs Image 2

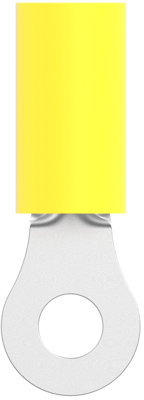

320568 AMP Cable Lugs Image 3

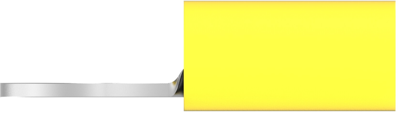

320568 AMP Cable Lugs Image 4

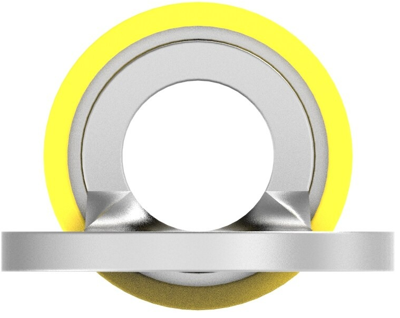

320568 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.7021 € *
Available: 392 pcs.
Available in 5 Days: 1,222 pcs.
Leadtime: 3 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6426 €
50 pcs.
0.5831 €
100 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable lug, 320568, AMP

Regular Wire, Closed Barrel, Straight, 300 V, #8,M4, 5180 – 13100 CMA

Technical Data

  • Version: Ring cable lug
  • AWG cross-section AWG 12 to 10
  • Colour: yellow
  • Material: Copper, tin-plated
  • Cable cross-section 2.6 to 6.6 mm²
Technical specifications
Ausführung Ringkabelschuh
AWG-Leiterquerschnitt AWG 12 bis 10
Farbe gelb
Gewindegröße M4
Isolationsmaterial Nylon
Isoliert Yes
Leiterquerschnitt 3,0-6,0 mm²
Lochdurchmesser 4.17 mm
Material Kupfer, verzinnt
max. Temperatur 105 °C
Logistics
Ursprungsland TW
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
