320576 | AMP

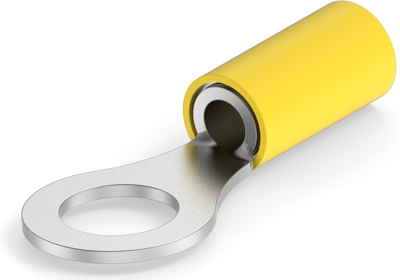

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 7.92 mm, M8, yellow, 320576
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6188 €
50 pcs.
0.5593 €
100 pcs.
0.4879 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 320576, AMP
Regular Wire, Closed Barrel, Straight, 300 V, 5/16,M8, 5180 – 13100 CMA
Technical Data
- Version: Ring cable lug
- AWG cross-section AWG 12 to 10
- Colour: yellow
- Material: Copper, tin-plated
- Cable cross-section 2.6 to 6.6 mm²
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 12 bis 10 | |
| Farbe | gelb | |
| Gewindegröße | M8 | |
| Isolationsmaterial | Nylon | |
| Isoliert | Yes | |
| Leiterquerschnitt | 3,0-6,0 mm² | |
| Lochdurchmesser | 7.92 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 105 °C |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
