320741 | AMP
Uninsulated ring cable lug, 26.7-42.4 mm², AWG 2, 11.51 mm, metal, 320741
Order No.: 39P8253
EAN: 4099889600285
MPN:
320741
Unit Price (€ / pc.)
3.6890 € *
Available: 0 pcs.
Available in 5 Days: 550 pcs.
Leadtime: 39 Weeks **
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
25 pcs.
3.6890 €
150 pcs.
3.0345 €
*incl. VAT plus shipping costs
**Subject to prior sale

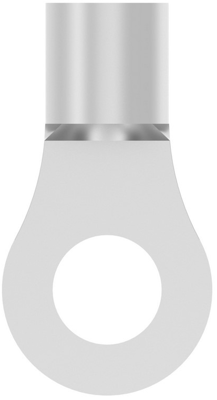

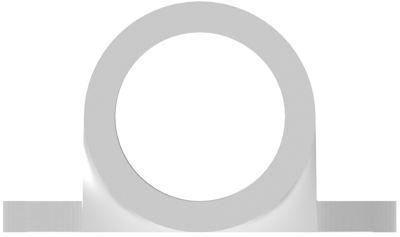

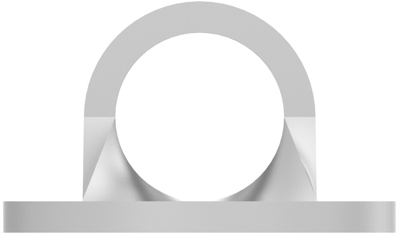

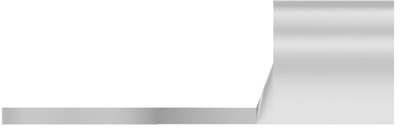

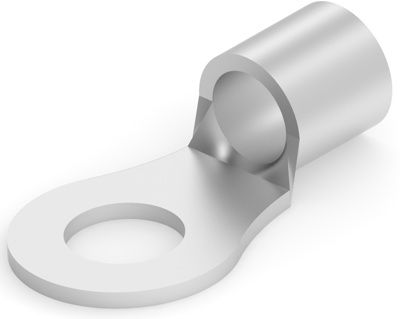

Cable lug, 320741, AMP
Shape Description: RING-050, Ring & Spade Stud Size: 7/16, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 9.735 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 26.7 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 11.51 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 2 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 26.7-42.4 mm² | |
| Hole diameter | 11.51 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
