320743 | AMP

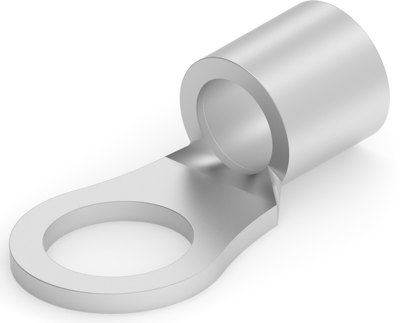

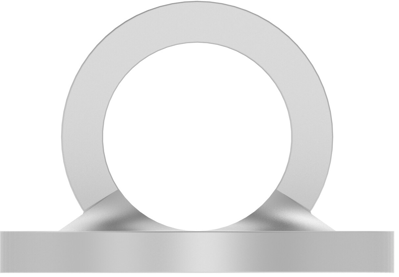

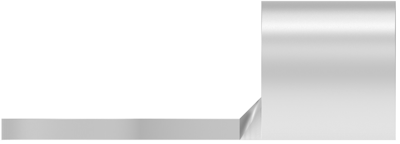

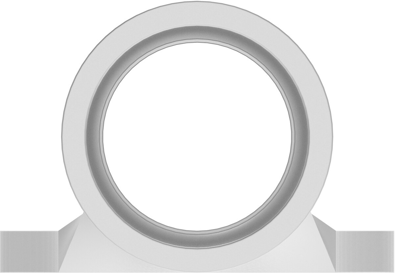

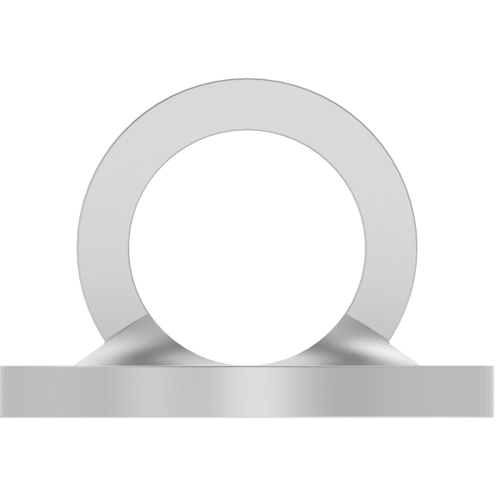

Uninsulated ring cable lug, 16.8-26.7 mm², AWG 4, 11.51 mm, metal, 320743
Order No.: 39P8707
EAN: 4099889603316
MPN:
320743
Unit Price (€ / pc.)
3.3201 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0583 €
50 pcs.
2.7489 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 320743, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 7/16, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 10.101 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 4 AWG, Wire Size: 16.8 – 26.7 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 11.51 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 4 | |
| Colour | metall | |
| Isolated | No | |
| Cable cross-section | 16,8-26,7 mm² | |
| Hole diameter | 11.51 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
