321121 | AMP

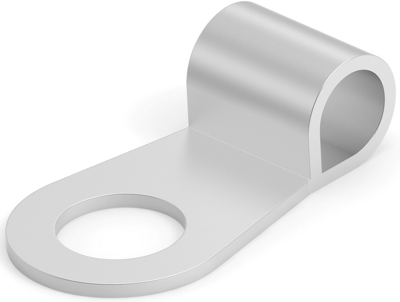

Uninsulated ring cable lug, 16.8-26.7 mm², AWG 4, 9.53 mm, metal, 321121
Order No.: 39P8501
EAN: 4099889601756
MPN:
321121
Unit Price (€ / pc.)
10.4482 € *
Available: 0 pcs.
Available in 5 Days: 2,400 pcs.
Leadtime: 55 Weeks **
Total Price:
10.45 € *
Price list
Quantity
Price per unit*
10 pcs.
10.4482 €
45 pcs.
9.8294 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 321121, AMP
Shape Description: RING-091, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 9.571 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Flag, Wire Insulation Support: Without, Wire Size: 4 AWG, Wire Size: 16.8 – 26.7 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 9.53 mm,9.91 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Box
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 4 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 16.8-26.7 mm² | |
| Hole diameter | 9.53 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
