321288 | AMP

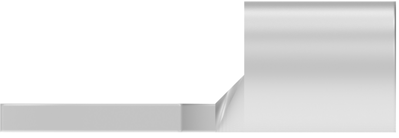

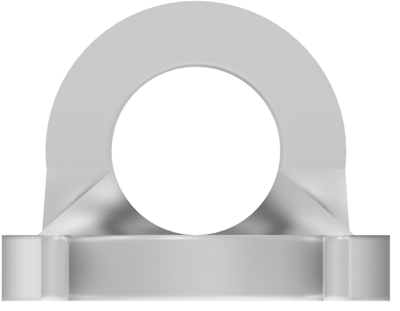

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 3.02 mm, metal, 321288
Order No.: 39P8741
EAN: 4099889603644
MPN:
321288
Unit Price (€ / pc.)
0.3070 € *
Available: 0 pcs.
Available in 5 Days: 5,197 pcs.
Leadtime: 55 Weeks **
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3070 €
1500 pcs.
0.2796 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 321288, AMP
Terminal Features: Slotted, Ring & Spade Stud Size: #4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: 0.519 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: 0.26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 0.26-1.65 mm² | |
| Hole diameter | 3.02 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
