321582 | AMP
Uninsulated ring cable lug, 60.6-76.3 mm², AWG 2, 8.33 mm, M8, metal, 321582
Order No.: 39P8498
EAN: 4099889601725
MPN:
321582
Unit Price (€ / pc.)
23.1336 € *
Available: 0 pcs.
Leadtime: On Request **

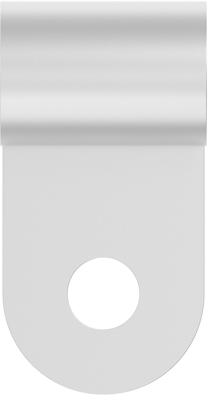

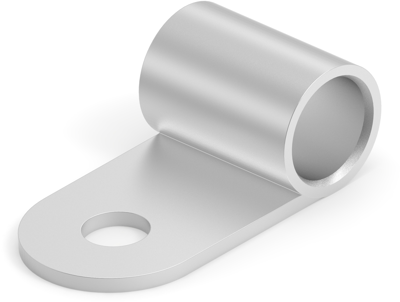

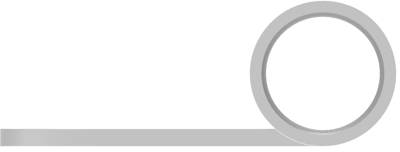

Cable lug, 321582, AMP
Shape Description: RING-090, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 37.736 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Flag Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 00 AWG, Wire Size: 60.6 – 76.3 mm², Wire Size: 119500 – 150500 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Box
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 2 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 60.6-76.3 mm² | |
| Hole diameter | 8.33 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
