321632 | AMP

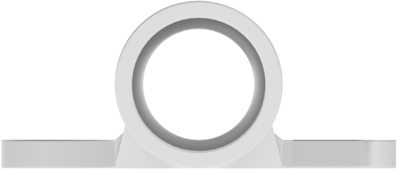

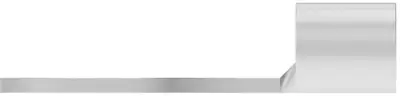

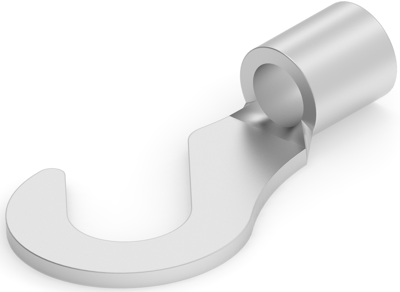

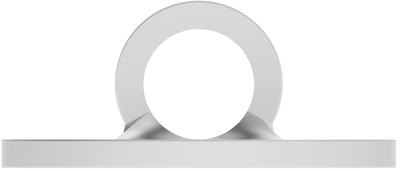

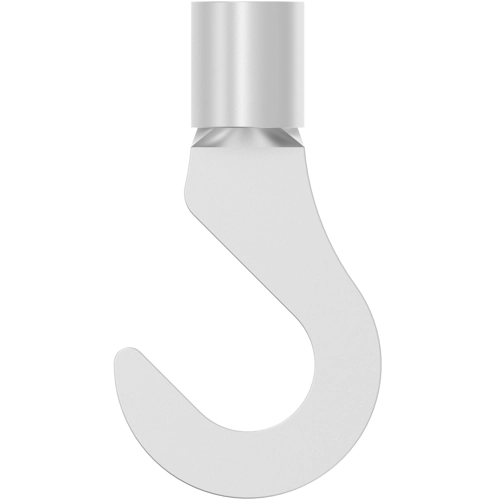

Uninsulated hook cable lug, 2.62-6.64 mm², AWG 12 to 10, M6, metal, 321632
Order No.: 39P8643
EAN: 4099889602715
MPN:
321632
Unit Price (€ / pc.)
0.7378 € *
Available: 0 pcs.
Available in 5 Days: 20,500 pcs.
Leadtime: 28 Weeks **
Rings and Spades, 321632, AMP
Shape Description: SPADE-050, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: 2.262 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Hook Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | Hakenkabelschuh | |
| AWG cross-section | AWG 12 bis 10 | |
| Colour | metall | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 2,62-6,64 mm² | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
