321828 | AMP

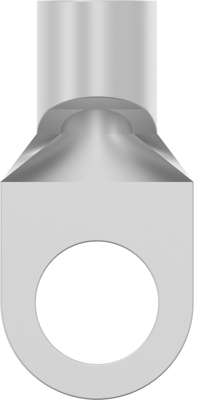

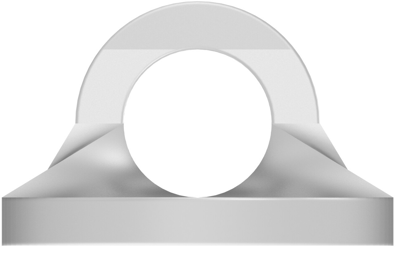

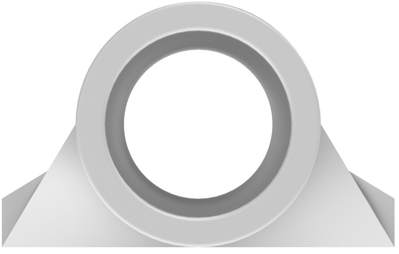

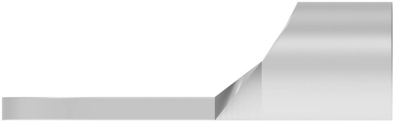

Uninsulated ring cable lug, 1.67-4.65 mm², AWG 14 to 12, 5 mm, metal, 321828
Order No.: 39P8670
EAN: 4099889602975
MPN:
321828
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Available in 5 Days: 5,670 pcs.
Leadtime: 37 Weeks **
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3213 €
1600 pcs.
0.2761 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 321828, AMP
Shape Description: RING-051, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 4.536 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 14 – 12 AWG, Wire Size: 1.67 – 4.65 mm², Wire Size: 3260 – 8230 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 14 to 12 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 1.67-4.65 mm² | |
| Hole diameter | 5 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
