321870 | AMP

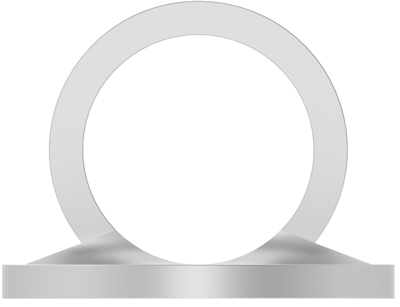

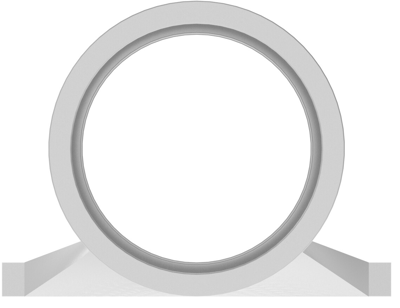

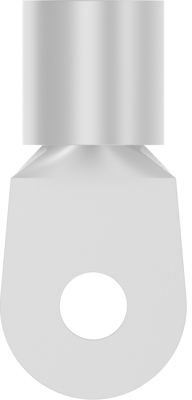

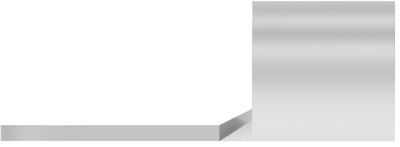

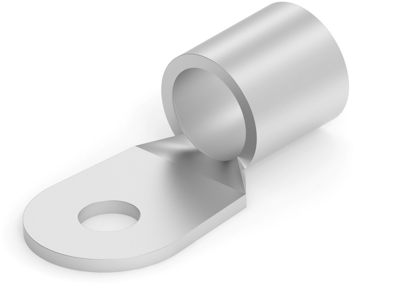

Uninsulated ring cable lug, 67-70 mm², AWG 2, 8.33 mm, M8, metal, 321870
Order No.: 39P8224
EAN: 4099889600032
MPN:
321870
Unit Price (€ / pc.)
8.7227 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 35 Weeks **
Ring cable lug, 321870, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 29.611 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 00 AWG, Wire Size: 67 – 70 mm², Wire Size: 119500 – 150500 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 2 | |
| Colour | metall | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 67-70 mm² | |
| Hole diameter | 8.33 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
