322235 | AMP

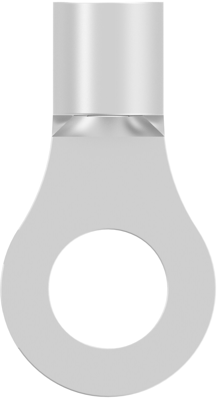

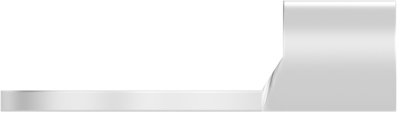

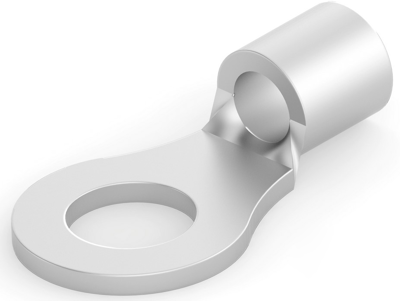

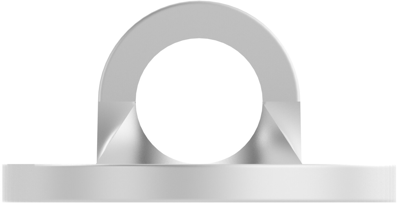

Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 4.17 mm, M4, metal, 322235
Order No.: 39P8325
EAN: 4099889600780
MPN:
322235
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Available in 5 Days: 877 pcs.
Leadtime: 39 Weeks **
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
10 pcs.
0.2975 €
50 pcs.
0.2654 €
100 pcs.
0.2261 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 322235, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .617 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 16 bis 14 | |
| Colour | metall | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 1,25-2,0 mm² | |
| Hole diameter | 4.17 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
