322333 | AMP

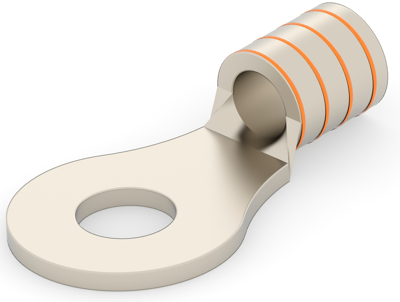

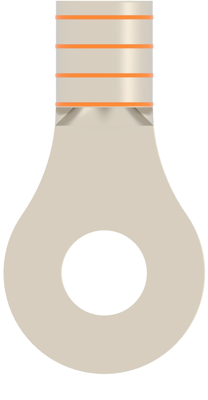

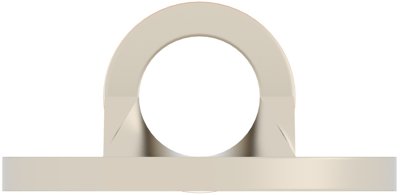

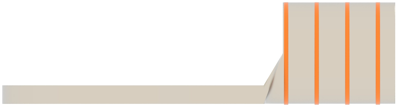

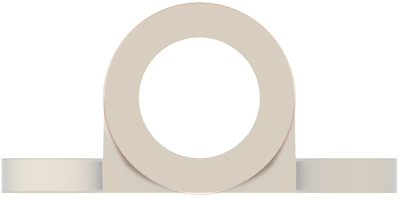

Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 3.68 mm, M3.5, metal, 322333
Order No.: 39P8423
EAN: 4099889601398
MPN:
322333
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Available in 5 Days: 1,793 pcs.
Leadtime: 39 Weeks **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
65 pcs.
1.3566 €
350 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 322333, AMP
Shape Description: RING-054, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: .917 g, Ring & Spade Plating Material: Nickel,Unplated, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | metal | |
| Thread size | M3.5 | |
| Isolated | No | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 3.68 mm | |
| Material | nickel | |
| max. operating temperature | 649 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
