322363 | AMP

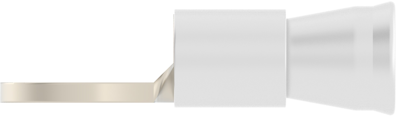

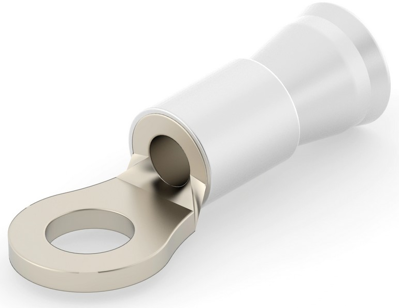

Uninsulated ring cable lug, 0.26-2.65 mm², AWG 22 to 16, 3.02 mm, metal, 322363
Order No.: 39P2214
EAN: 4099889590876
MPN:
322363
Unit Price (€ / pc.)
3.3915 € *
Available: 0 pcs.
Available in 5 Days: 844 pcs.
Leadtime: 43 Weeks **
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.1297 €
50 pcs.
2.8084 €
100 pcs.
2.5347 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 322363, AMP
Shape Description: RING-085, Ring & Spade Stud Size: #4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .712 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 2.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 22 bis 16 | |
| Colour | metall | |
| Isolated | No | |
| Cable cross-section | 0,26-2,65 mm² | |
| Hole diameter | 3.02 mm | |
| Material | Kupfer, vernickelt | |
| max. operating temperature | 343 °C |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
