322704 | AMP
Uninsulated ring cable lug, 21 mm², AWG 4, 9.53 mm, metal, 322704
Order No.: 39P8702
EAN: 4099889603262
MPN:
322704
Unit Price (€ / pc.)
12.2213 € *
Available: 0 pcs.
Available in 5 Days: 500 pcs.
Leadtime: 55 Weeks **
Total Price:
12.22 € *
Price list
Quantity
Price per unit*
9 pcs.
12.2213 €
100 pcs.
10.2697 €
*incl. VAT plus shipping costs
**Subject to prior sale

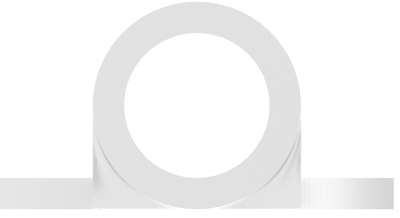

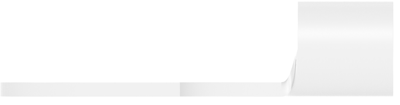

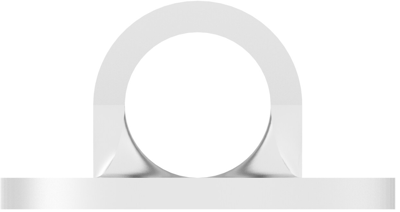

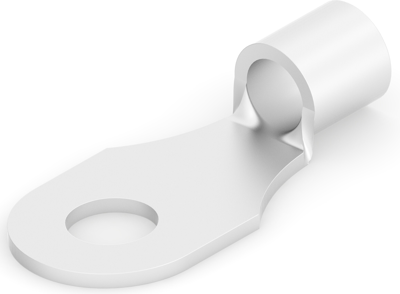

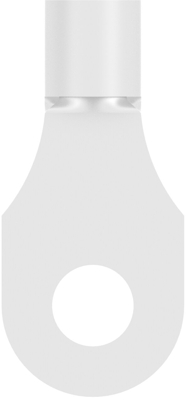

Ring cable lug, 322704, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: 17.195 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 4 AWG, Wire Size: 21 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 9.53 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 4 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 21 mm² | |
| Hole diameter | 9.53 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
