322870 | AMP

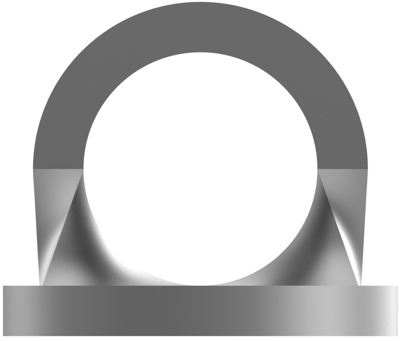

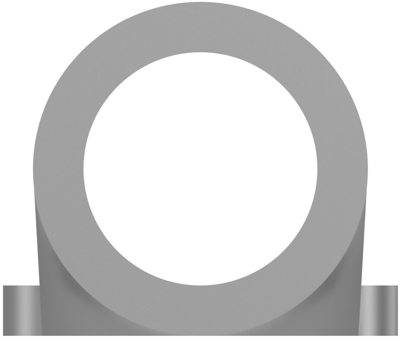

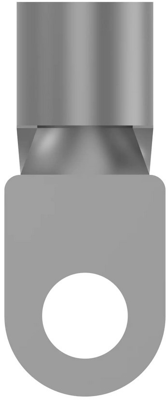

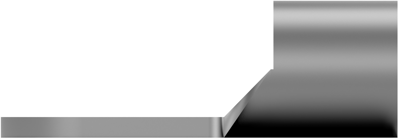

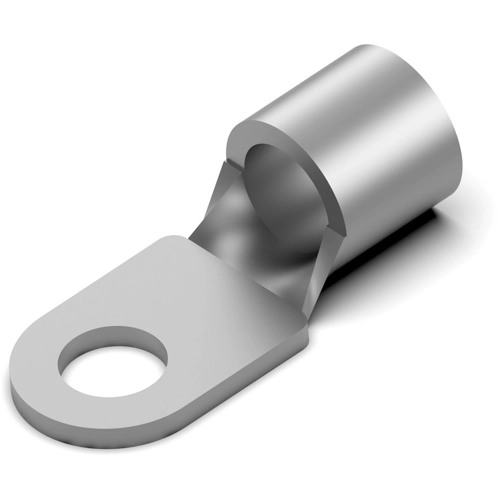

Uninsulated ring cable lug, 26.7-42.4 mm², AWG 2, 8.33 mm, M8, metal, 322870
Order No.: 39P8249
EAN: 4099889600247
MPN:
322870
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Available in 5 Days: 46 pcs.
Leadtime: 4 Weeks **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
10 pcs.
2.1420 €
50 pcs.
1.9278 €
100 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 322870, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 12.297 g, Ring & Spade Plating Material: Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 26.7 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 2 | |
| Colour | metall | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 26,7-42,4 mm² | |
| Hole diameter | 8.33 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
