323168 | AMP
Uninsulated ring cable lug, 6.64-10.5 mm², AWG 8, 9.91 mm, metal, 323168
Order No.: 39P8409
EAN: 4099889601282
MPN:
323168
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 39 Weeks **
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
53 pcs.
1.6541 €
5000 pcs.
1.5946 €
*incl. VAT plus shipping costs
**Subject to prior sale

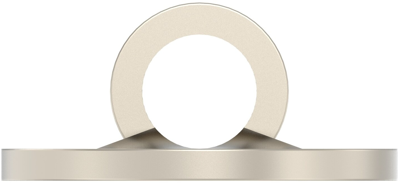

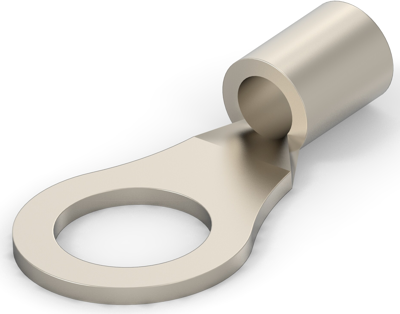

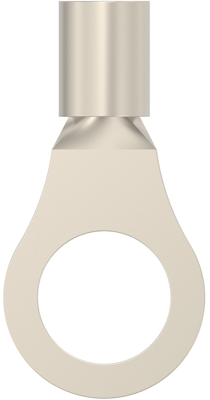

Ring cable lug, 323168, AMP
Shape Description: RING-084, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 3.616 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 6.64 – 10.5 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 8 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 6.64-10.5 mm² | |
| Hole diameter | 9.91 mm | |
| Material | copper, nickel-plated | |
| max. operating temperature | 343 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
