323177 | AMP

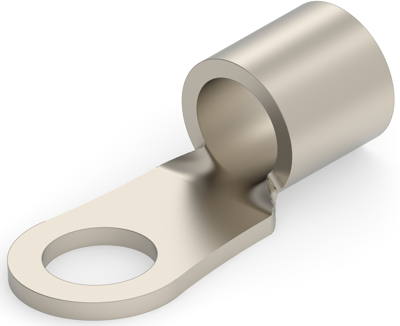

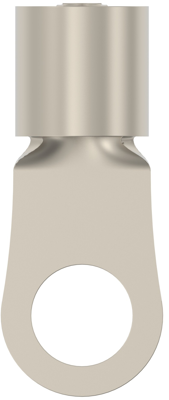

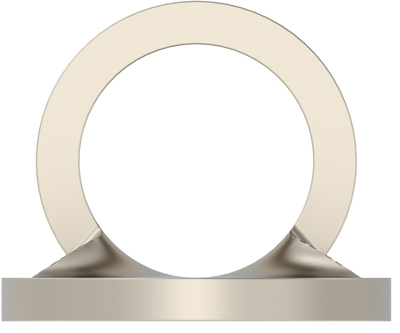

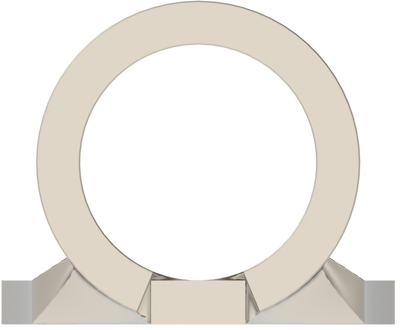

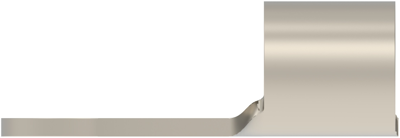

Uninsulated ring cable lug, 26.7-42.4 mm², AWG 2, 9.91 mm, metal, 323177
Order No.: 39P8381
EAN: 4099889601084
MPN:
323177
Unit Price (€ / pc.)
5.5454 € *
Available: 0 pcs.
Available in 5 Days: 153 pcs.
Leadtime: 43 Weeks **
Cable lug, 323177, AMP
Shape Description: RING-083, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 12.14 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 26.7 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 2 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 26.7-42.4 mm² | |
| Hole diameter | 9.91 mm | |
| Material | copper, nickel-plated | |
| max. operating temperature | 343 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
