323747 | AMP

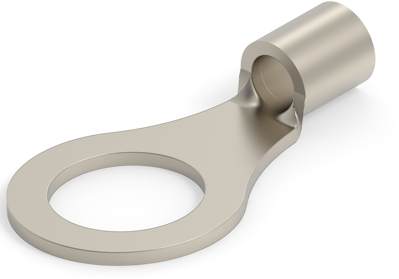

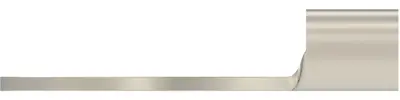

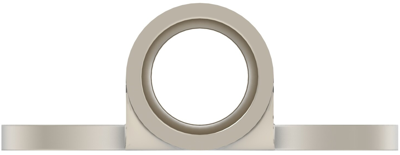

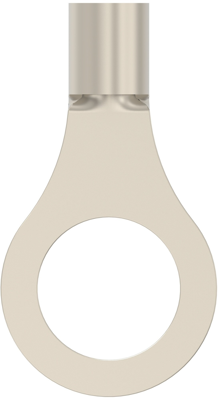

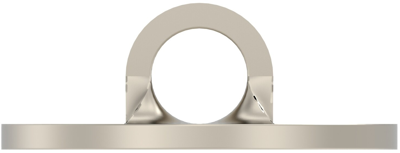

Uninsulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 9.91 mm, metal, 323747
Order No.: 39P8413
EAN: 4099889601312
MPN:
323747
Unit Price (€ / pc.)
5.0813 € *
Available: 0 pcs.
Available in 5 Days: 6,000 pcs.
Leadtime: 39 Weeks **
Total Price:
5.08 € *
Price list
Quantity
Price per unit*
20 pcs.
5.0813 €
1000 pcs.
4.0103 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 323747, AMP
Shape Description: RING-054, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 2.715 g, Ring & Spade Plating Material: Nickel,Unplated, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 2.62-6.64 mm² | |
| Hole diameter | 9.91 mm | |
| Material | nickel | |
| max. operating temperature | 649 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
