323987 | AMP

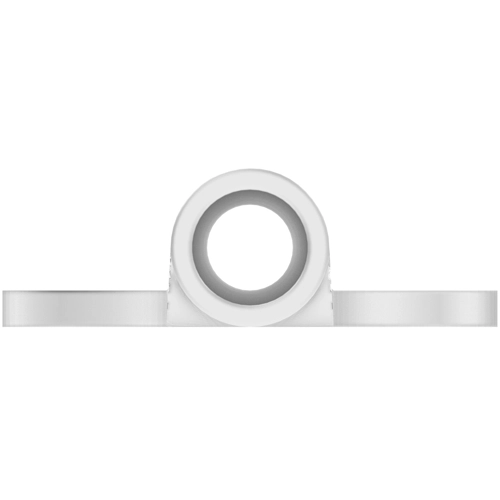

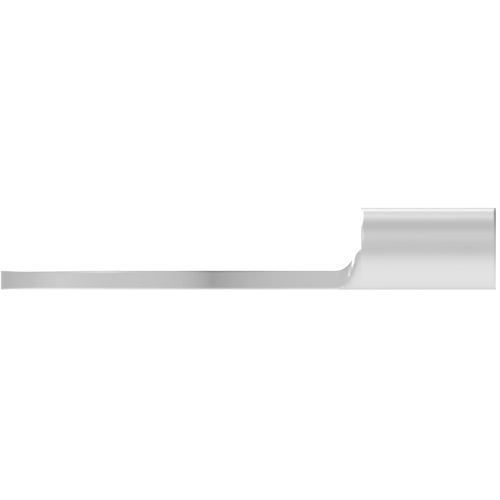

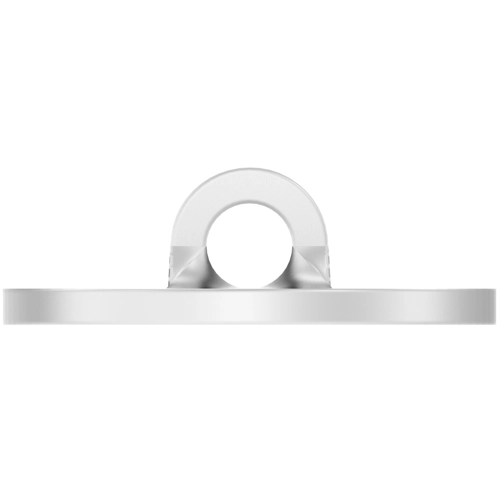

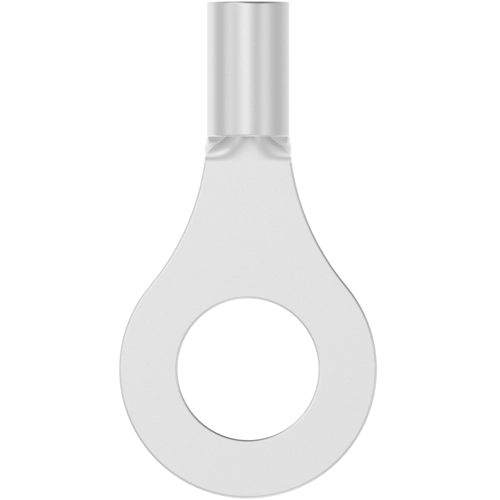

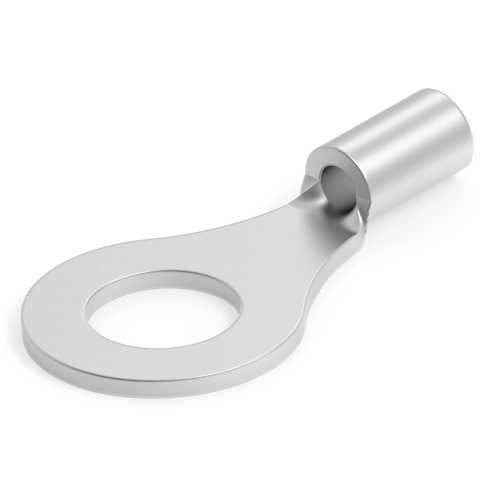

Uninsulated ring cable lug, 0.2-0.518 mm², AWG 24 to 20, 4.34 mm, M4, metal, 323987
Order No.: 39P8329
EAN: 4099889600803
MPN:
323987
Unit Price (€ / pc.)
0.1999 € *
Available: 0 pcs.
Available in 5 Days: 1,094 pcs.
Leadtime: 16 Weeks **
Total Price:
0.20 € *
Price list
Quantity
Price per unit*
500 pcs.
0.1999 €
2500 pcs.
0.1964 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 323987, AMP
Shape Description: RING-054, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.344 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 24 – 20 AWG, Wire Size: 0.2 -0.518 mm², Wire Size: 320 – 1290 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 24 to 20 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 0.2-0.518 mm² | |
| Hole diameter | 4.34 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
