324050 | AMP

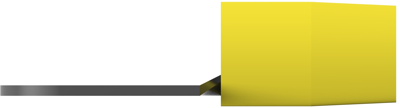

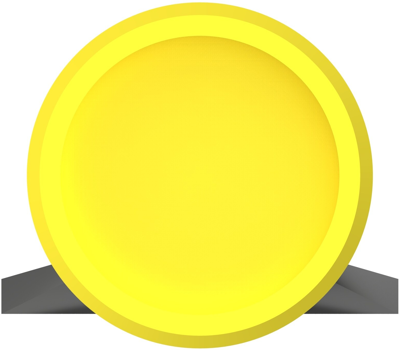

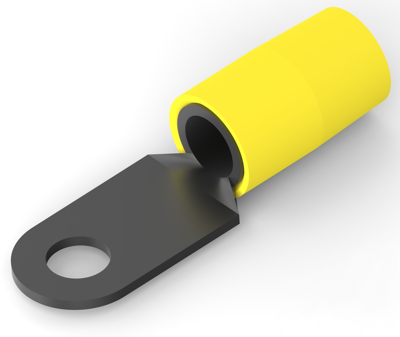

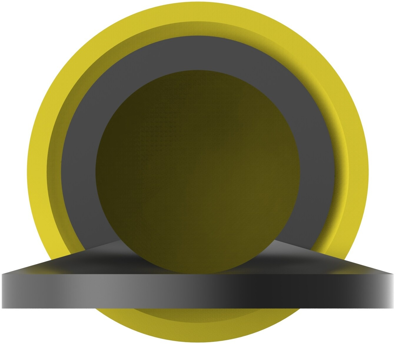

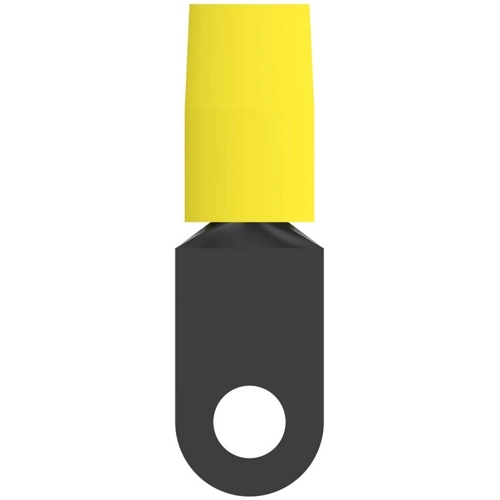

Insulated ring cable lug, 16.8-26.7 mm², AWG 4, 6.73 mm, M6, yellow, 324050
Order No.: 39P3207
EAN: 4099889591606
MPN:
324050
Unit Price (€ / pc.)
5.5573 € *
Available: 0 pcs.
Leadtime: 37 Weeks **
Total Price:
5.56 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5573 €
10 pcs.
5.1051 €
50 pcs.
4.5934 €
100 pcs.
4.1412 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 324050, AMP
Shape Description: RING-047, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 4 AWG, Wire Size: 16.8 – 26.7 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 1.219 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 4 | |
| Colour | gelb | |
| Thread size | M6 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 16,8-26,7 mm² | |
| Hole diameter | 6.73 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
