324061 | AMP

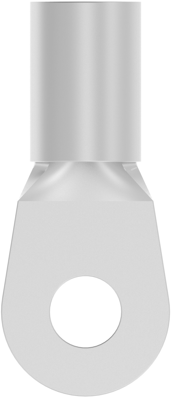

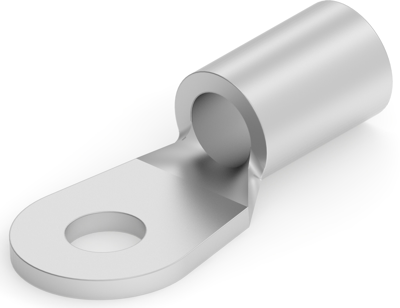

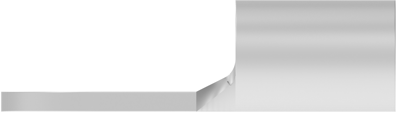

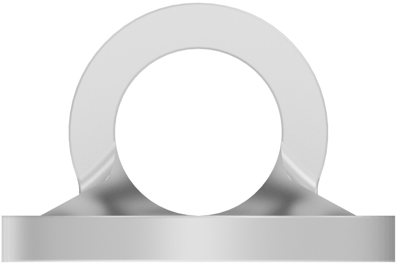

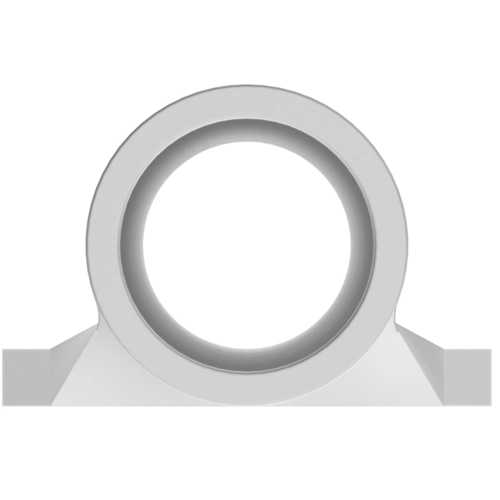

Uninsulated ring cable lug, 6.64-10.5 mm², AWG 8, 4.34 mm, M4, metal, 324061
Order No.: 39P8736
EAN: 4099889603590
MPN:
324061
Unit Price (€ / pc.)
0.7140 € *
Available: 0 pcs.
Available in 5 Days: 16,000 pcs.
Leadtime: 4 Weeks **
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
200 pcs.
0.7140 €
800 pcs.
0.5831 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 324061, AMP
Shape Description: RING-049, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 2.99 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 6.64 – 10.5 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 8 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 6.64-10.5 mm² | |
| Hole diameter | 4.34 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
