324085 | AMP

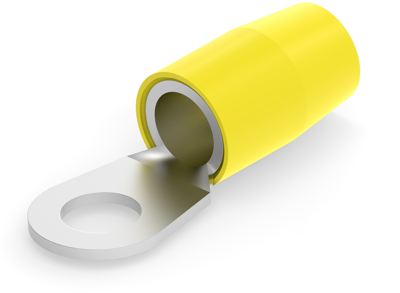

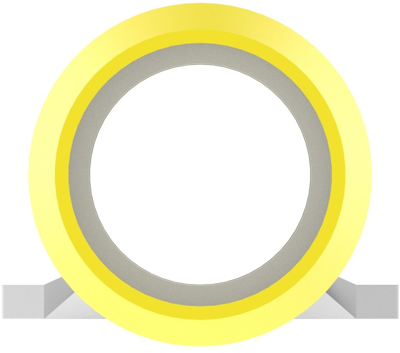

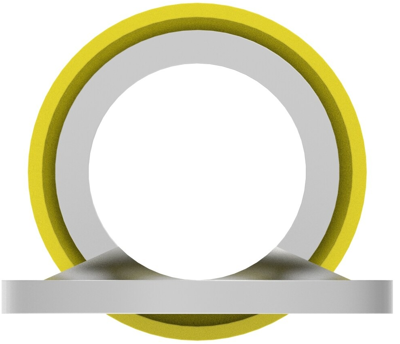

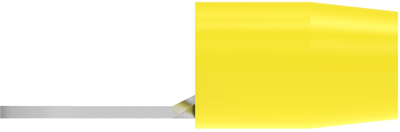

Insulated ring cable lug, 60.6-76.3 mm², AWG 2, 13.08 mm, M12, yellow, 324085
Order No.: 39P3204
EAN: 4099889591583
MPN:
324085
Unit Price (€ / pc.)
20.0158 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 324085, AMP
Shape Description: RING-047, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 00 AWG, Wire Size: 60.6 – 76.3 mm², Wire Size: 119500 – 150500 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 2 | |
| Colour | yellow | |
| Thread size | M12 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 60.6-76.3 mm² | |
| Hole diameter | 13.08 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
