32859 | AMP

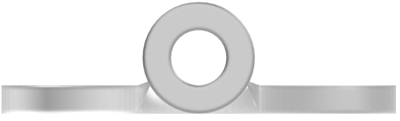

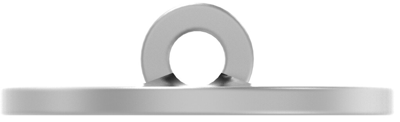

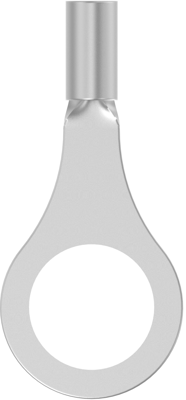

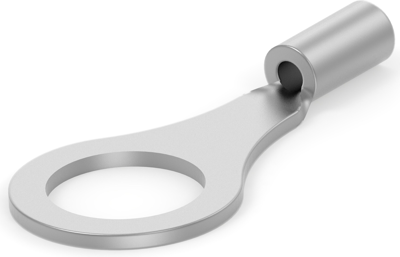

Uninsulated ring cable lug, 0.12-0.4 mm², AWG 26, 4.17 mm, M4, metal, 32859
Order No.: 39P8335
EAN: 4099889600865
MPN:
32859
Unit Price (€ / pc.)
0.1642 € *
Available: 0 pcs.
Available in 5 Days: 18,520 pcs.
Leadtime: 39 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.1642 €
4000 pcs.
0.1309 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 32859, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 26 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 26 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 0.12-0.4 mm² | |
| Hole diameter | 4.17 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
