328996 | AMP

Insulated ring cable lug, 1.04-2.0 mm², AWG 16 to 14, 3.02 mm, M2.5, blue, 328996

Order No.: 39P3604
EAN: 4099889594430
MPN:
328996
Series: PIDG

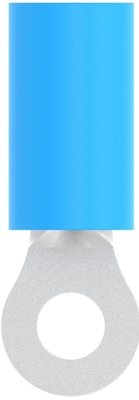

328996 AMP Cable Lugs Image 1

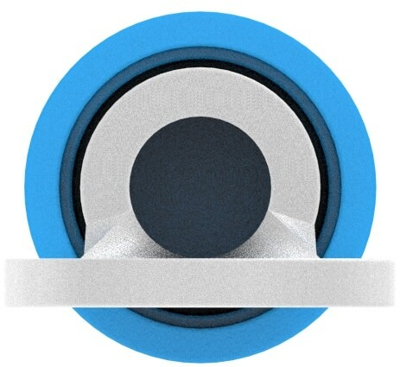

328996 AMP Cable Lugs Image 2

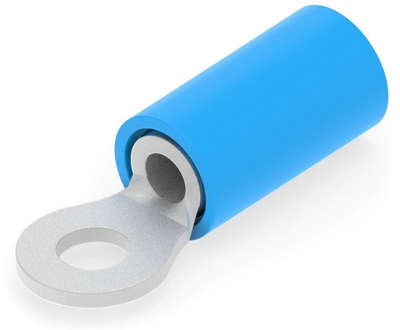

328996 AMP Cable Lugs Image 3

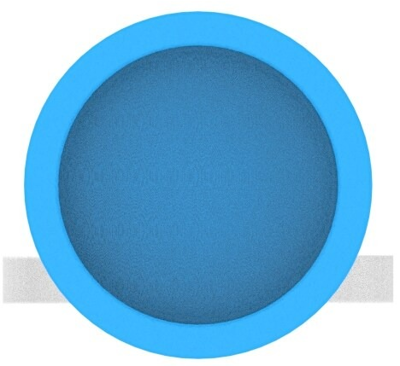

328996 AMP Cable Lugs Image 4

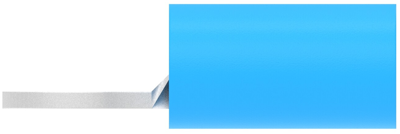

328996 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1880 € *
Available: 0 pcs.
Leadtime: 45 Weeks **
Total Price:
1,880.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.1880 €

Ring cable lug, 328996, AMP

Terminal Features: Sheared, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.023 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Comment: Available On-Tape for Automatic Termination.

Technical specifications
Version ring cable lug
AWG cross-section AWG 16 to 14
Colour blue
Thread size M2.5
Material Insulation PA
Isolated Yes
Cable cross-section 1.04-2.0 mm²
Hole diameter 3.02 mm
Material copper, tin-plated
max. operating temperature 105 °C
Logistics
Country of origin TW
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
