33168 | AMP

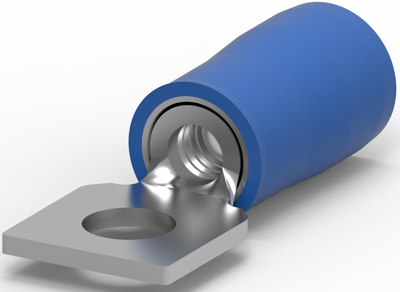

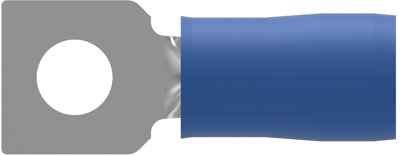

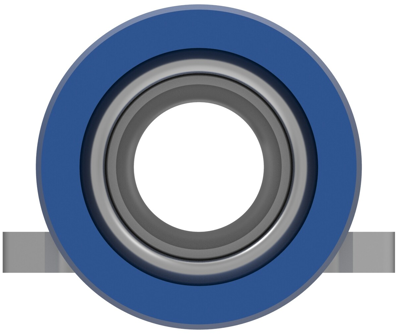

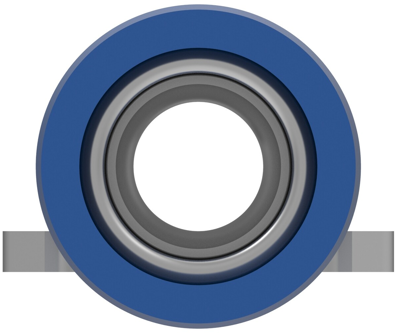

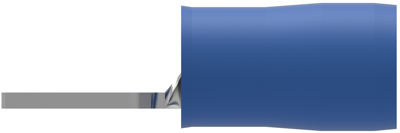

Insulated rectangular contact tab with hole, 1.25-2 mm², AWG 16, 3.68 mm, M3.5, blue, 33168
Unit Price (€ / pc.)
0.5117 € *
Available: 0 pcs.
Available in 5 Days: 1,832 pcs.
Leadtime: 15 Weeks **
Total Price:
204.68 € *
Price list
Quantity
Price per unit*
400 pcs.
0.5117 €
950 pcs.
0.4998 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rectangular cable lug, 33168, AMP
Terminal, P.I.D.G, Wire size 16 AWG, Insulation support, Closed, Straight, Copper, Tin, Loose piece.
Technical specifications
| Version | Rechteckiger-Kontaktzunge mit Loch | |
| AWG cross-section | AWG 16 | |
| Colour | blau | |
| Thread size | M3,5 | |
| Material Insulation | Nylon | |
| Isolated | Yes | |
| Cable cross-section | 1,25-2 mm² | |
| Hole diameter | 3.68 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 105 °C | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
