33466-1 | AMP

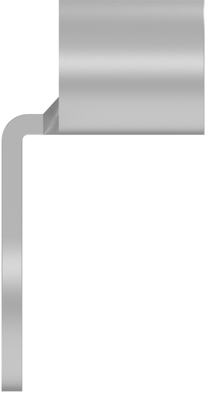

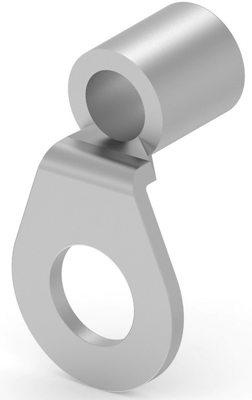

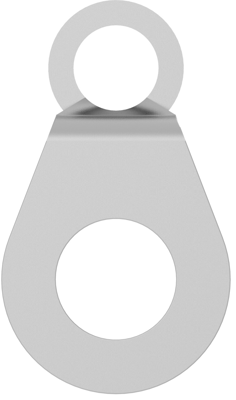

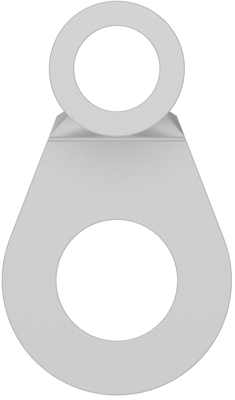

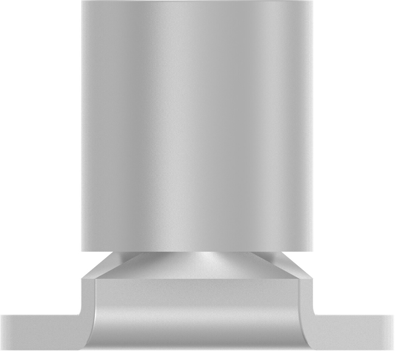

Uninsulated ring cable lug, 13-15 mm², AWG 6, 8.33 mm, M8, metal, 33466-1
Order No.: 39P8719
EAN: 4099889603439
MPN:
33466-1
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Leadtime: On Request **
Ring cable lug, 33466-1, AMP
Shape Description: RING-080, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: 90°, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 6 AWG, Wire Size: 13 – 15 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 6 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 13-15 mm² | |
| Hole diameter | 8.33 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
