34104-6 | AMP

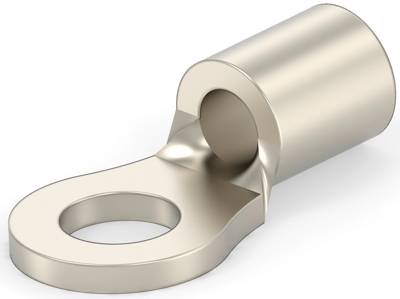

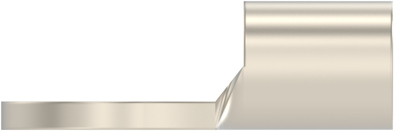

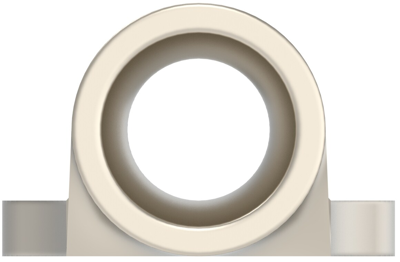

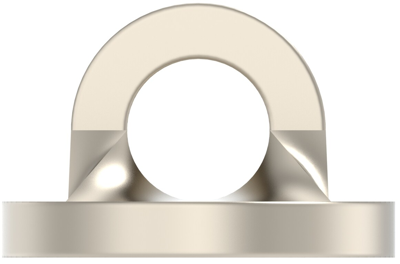

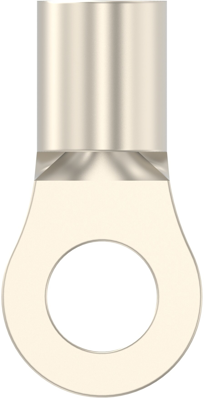

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22, 3.02 mm, M2.5, metal, 34104-6
Order No.: 39P8585
EAN: 4099889602227
MPN:
34104-6
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 5 Days: 4,917 pcs.
Leadtime: 17 Weeks **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
250 pcs.
0.3927 €
1400 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 34104-6, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .43 g, Ring & Spade Plating Material: Copper,Nickel, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 | |
| Colour | metal | |
| Thread size | M2.5 | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Hole diameter | 3.02 mm | |
| Material | copper, nickel-plated | |
| max. operating temperature | 343 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
