34107-1 | AMP

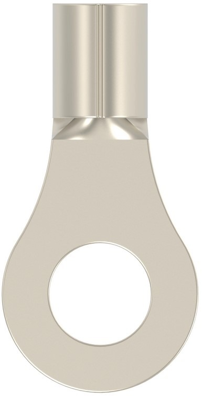

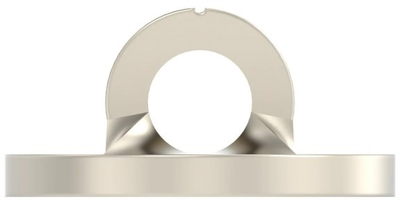

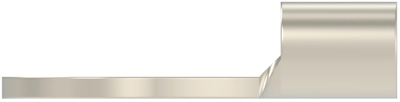

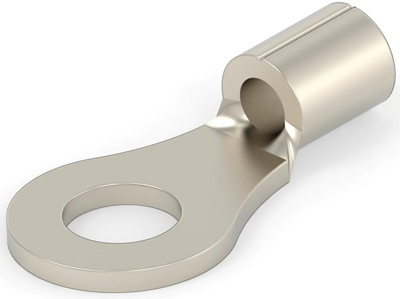

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.68 mm, M3.5, metal, 34107-1
Order No.: 39P8691
EAN: 4099889603163
MPN:
34107-1
Unit Price (€ / pc.)
3.9270 € *
Available: 0 pcs.
Available in 5 Days: 1,767 pcs.
Leadtime: 43 Weeks **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
25 pcs.
3.9270 €
150 pcs.
3.7009 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 34107-1, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Gold, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | metal | |
| Thread size | M3.5 | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Hole diameter | 3.68 mm | |
| Material | copper, gold-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
