34117 | AMP

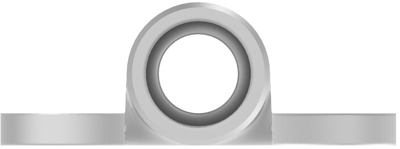

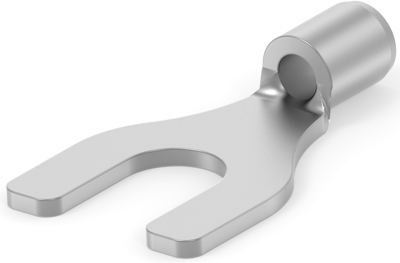

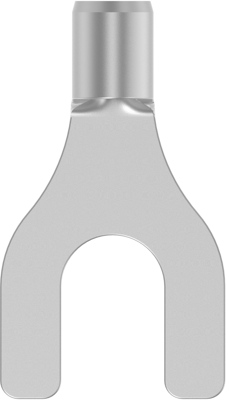

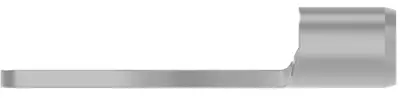

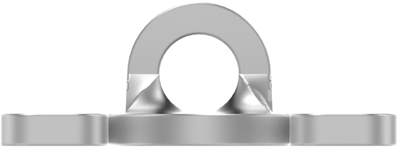

Uninsulated forked cable lug, 0.3-1.42 mm², AWG 22, M4, metal, 34117
Order No.: 39P8622
EAN: 4099889602555
MPN:
34117
Unit Price (€ / pc.)
0.1666 € *
Available: 0 pcs.
Available in 5 Days: 18,420 pcs.
Leadtime: 39 Weeks **
Total Price:
0.17 € *
Price list
Quantity
Price per unit*
550 pcs.
0.1666 €
2700 pcs.
0.1571 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 34117, AMP
Shape Description: SPADE-023, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 22 | |
| Colour | metal | |
| Thread size | M4 | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
