34123 | AMP

Uninsulated ring cable lug, 1.04-2.62 mm², AWG 16, 5 mm, black, 34123

Order No.: 39P8675
EAN: 4099889603026
MPN:
34123

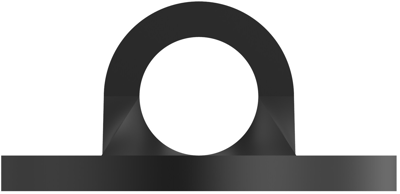

34123 AMP Cable Lugs Image 1

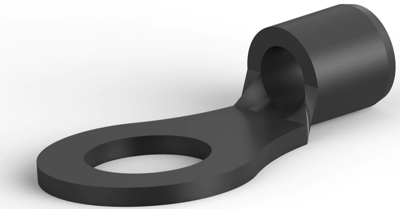

34123 AMP Cable Lugs Image 2

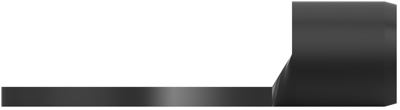

34123 AMP Cable Lugs Image 3

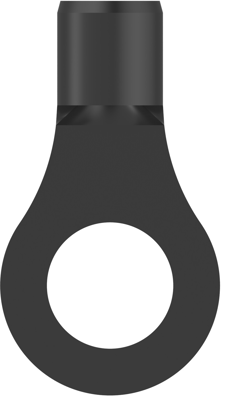

34123 AMP Cable Lugs Image 4

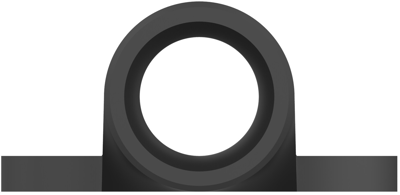

34123 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1868 € *
Available: 0 pcs.
Available in 5 Days: 18,000 pcs.
Leadtime: 40 Weeks **
Total Price:
373.66 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.1868 €
3000 pcs.
0.1630 €
*incl. VAT plus shipping costs
**Subject to prior sale

Ring cable lug, 34123, AMP

Shape Description: RING-048, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Ausführung Ringkabelschuh
AWG-Leiterquerschnitt AWG 16
Farbe schwarz
Isoliert No
Leiterquerschnitt 1,04-2,62 mm²
Lochdurchmesser 5 mm
Material Kupfer, verzinnt
max. Temperatur 170 °C
Logistics
Ursprungsland IN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
