34155 | AMP

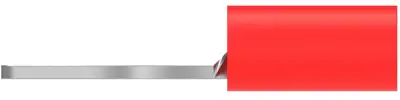

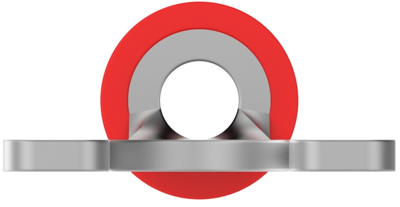

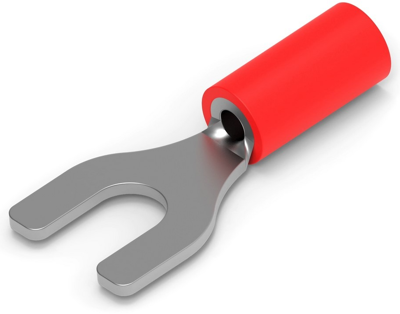

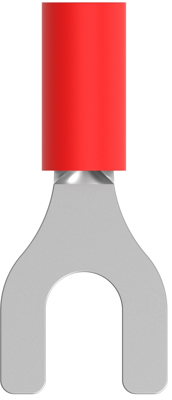

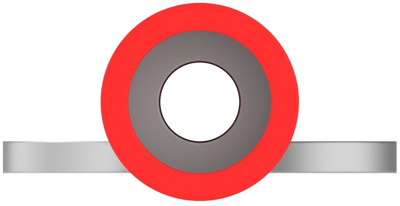

Insulated forked cable lug, 0.26-1.65 mm², AWG 22 to 16, M4, red, 34155
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Available in 5 Days: 18,500 pcs.
Leadtime: 43 Weeks **
Fork cable lug, 34155, AMP
Shape Description: SPADE-021, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 0.866 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | red | |
| Thread size | M4 | |
| Material Insulation | vinyl | |
| Isolated | Yes | |
| Cable cross-section | 0.26-1.65 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
