34176 | AMP
Insulated forked cable lug, 2.62-5.64 mm², AWG 12 to 10, yellow, 34176
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Available in 5 Days: 2,600 pcs.
Leadtime: 43 Weeks **
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
250 pcs.
0.4165 €
1300 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale

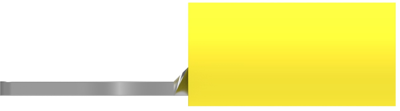

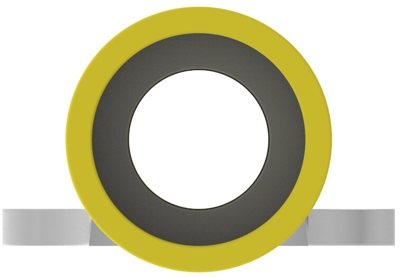

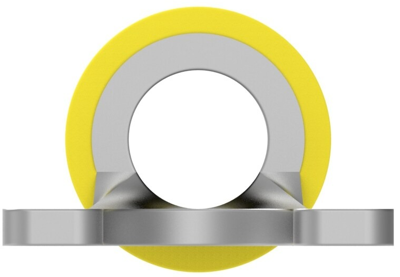

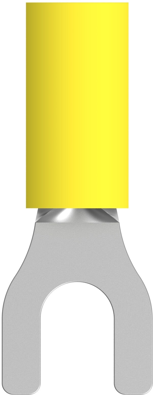

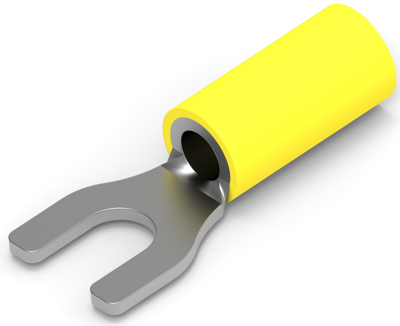

Fork cable lug, 34176, AMP
Shape Description: SPADE-021, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 4.976 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 5.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 5 mm, Tongue Thickness: 1.02 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Material Insulation | vinyl | |
| Isolated | Yes | |
| Cable cross-section | 2.62-5.64 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
