342186-1 | AMP
Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 8.3 mm, M8, yellow, 342186-1
Order No.: 39P4007
EAN: 4099889597462
MPN:
342186-1
Unit Price (€ / pc.)
0.6426 € *
Available: 0 pcs.
Leadtime: On Request **

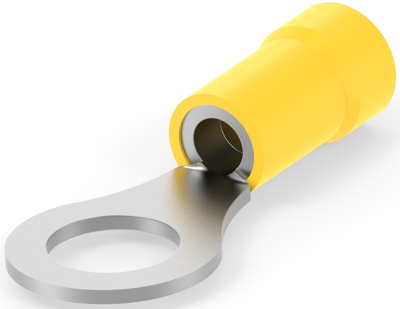

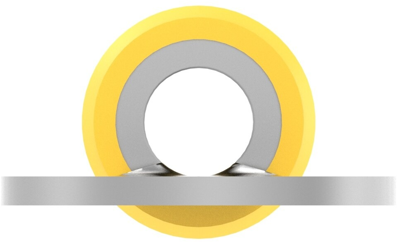

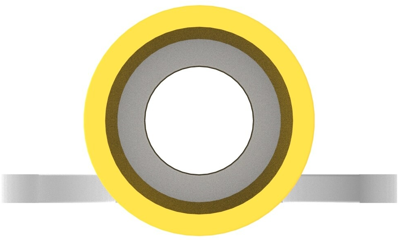

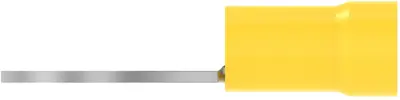

Ring cable lug, 342186-1, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Stripe Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 8.3 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Thread size | M8 | |
| Material Insulation | PVC | |
| Isolated | Yes | |
| Cable cross-section | 3.0-6.0 mm² | |
| Hole diameter | 8.3 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
