34247 | AMP
Uninsulated forked cable lug, 0.12-0.4 mm², AWG 26 to 22, M3, metal, 34247
Order No.: 39P8341
EAN: 4099889600919
MPN:
34247
Unit Price (€ / pc.)
0.1928 € *
Available: 0 pcs.
Leadtime: On Request **

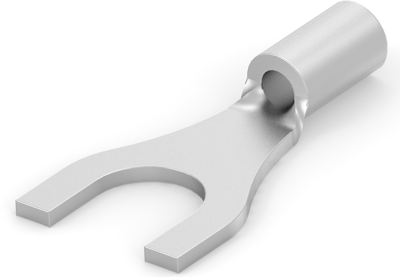

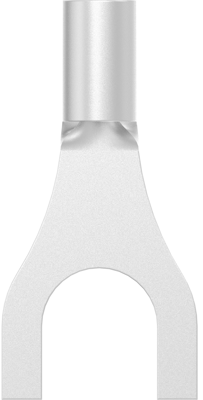

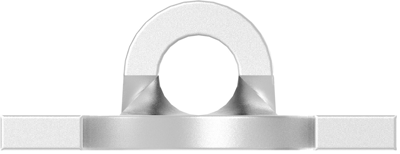

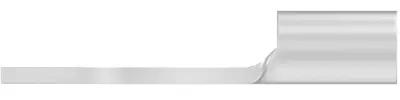

Fork cable lug, 34247, AMP
Shape Description: SPADE-023, Ring & Spade Stud Size: #4,M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: .122 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .46 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 26 to 22 | |
| Colour | metal | |
| Thread size | M3 | |
| Isolated | No | |
| Cable cross-section | 0.12-0.4 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
