34484 | AMP

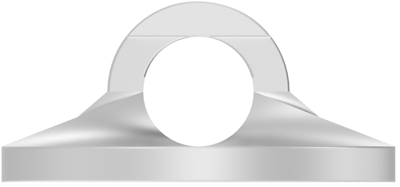

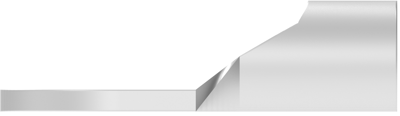

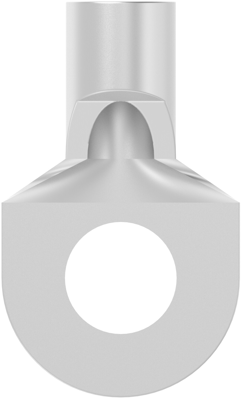

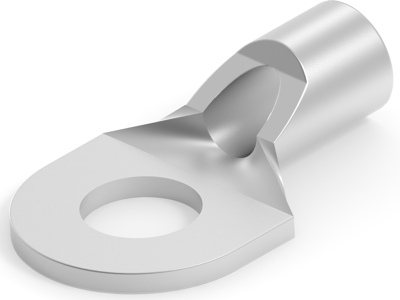

Uninsulated ring cable lug, 1.65-4.17 mm², AWG 14 to 12, 4.82 mm, metal, 34484
Order No.: 39P8669
EAN: 4099889602968
MPN:
34484
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Leadtime: 35 Weeks **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
10 pcs.
0.5831 €
50 pcs.
0.5236 €
100 pcs.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 34484, AMP
Shape Description: RING-051, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.548 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 14 – 12 AWG, Wire Size: 1.65 – 4.17 mm², Wire Size: 3260 – 8230 CMA, Stud Diameter: 4.82 mm, Tongue Thickness: .97 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 14 bis 12 | |
| Colour | metall | |
| Isolated | No | |
| Cable cross-section | 1,65-4,17 mm² | |
| Hole diameter | 4.82 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
