34487 | AMP

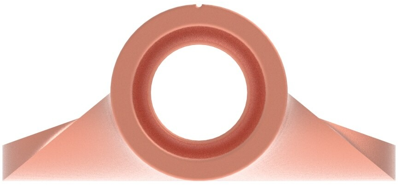

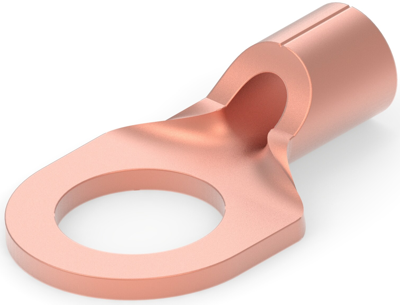

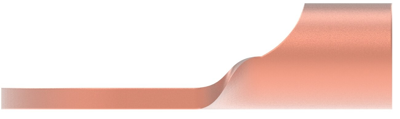

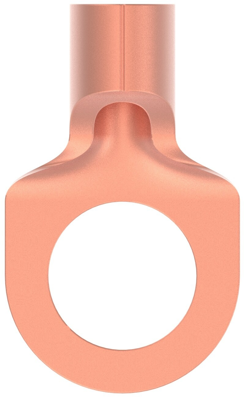

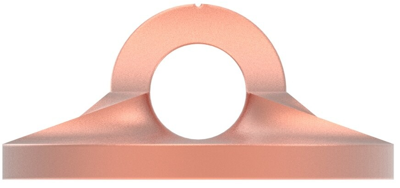

Uninsulated ring cable lug, 1.65-4.17 mm², AWG 14 to 12, 6.73 mm, M6, metal, 34487
Order No.: 39P8668
EAN: 4099889602951
MPN:
34487
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Available in 5 Days: 2,500 pcs.
Leadtime: 37 Weeks **
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
200 pcs.
0.4760 €
1100 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 34487, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.167 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 14 – 12 AWG, Wire Size: 1.65 – 4.17 mm², Wire Size: 3260 – 8230 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .97 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 14 to 12 | |
| Colour | metal | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 1.65-4.17 mm² | |
| Hole diameter | 6.73 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
