34896 | AMP

Name: Uninsulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 6.35 mm, 34896
Brand: AMP
SKU: 71P8116
Price: 0.17 EUR
Availability: OutOfStock

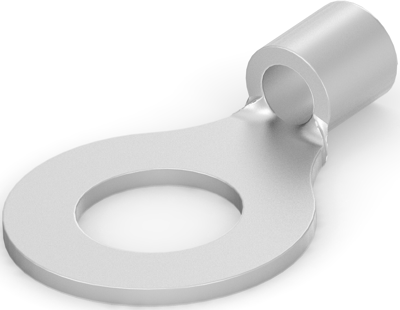

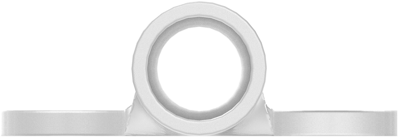

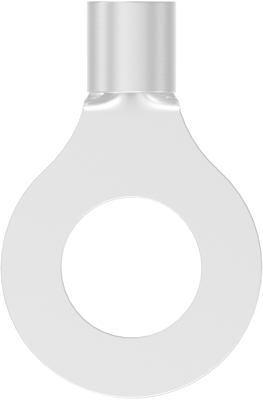

Uninsulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 6.35 mm, 34896

Order No.: 71P8116

EAN: 4099891604196

MPN:

34896

Series: SOLISTRAND

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 1.04-2.62 mm²

AWG cross-section AWG 16 to 14

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1690 € *

Available: 0 pcs.

Available in 5 Days: 11,391 pcs.

Leadtime: 25 Weeks **

Add to Cart

Total Price:

0.17 € *

Price list

Quantity

Price per unit*

550 pcs.

0.1690 €

2700 pcs.

0.1571 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Ring cable lug, 34896, AMP

Ring terminal and Spade terminal, Ring tongue, 16-14 AWG wire size, 1.04-2.62 mm² wire size, 2050-5180 CMA wire size.

Technical specifications

	Version	ring cable lug
	AWG cross-section	AWG 16 to 14
	Isolated	No
	Cable cross-section	1.04-2.62 mm²
	Hole diameter	6.35 mm
	Material	copper, tin-plated
	max. operating temperature	170 °C
	shrinkable tubing	No
